Hoists (Lift Systems)

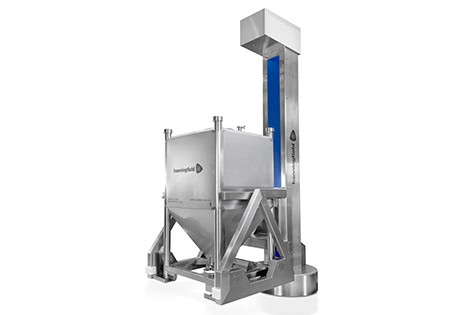

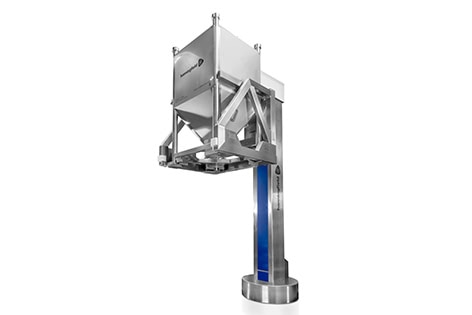

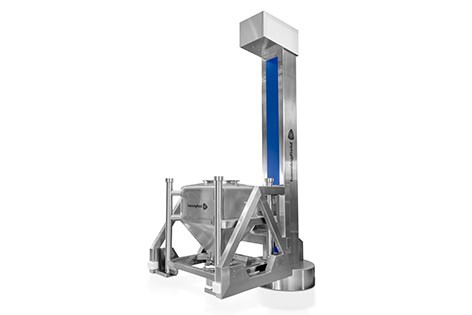

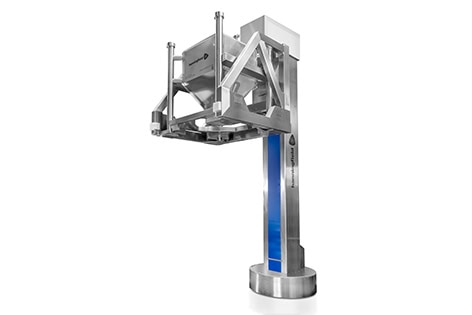

Hanningfield Uni-Hoist lift systems are designed for the handling of containers such as Intermediate Bulk Containers (IBCs), drums, containers and bins.
Uni-Hoist Electric Stationary
pharmaceutical hoist
ATEX Hoist
pharmaceutical hoist
Hoist Lift System
Pharmaceutical Hoist Lift System
Hoist Lift System
Hoist Lift System
Hoist Lift System
Uni-Hoist Electric Stationary
Uni-Hoist Electric Stationary
Pharmaceutical Hoist
ATEX Hoist
Pharmaceutical Hoist
pharmaceutical lift system
Uni-Hoist Electric Stationary
pharmaceutical hoist
ATEX Hoist
pharmaceutical hoist
Hoist Lift System
Pharmaceutical Hoist Lift System
Hoist Lift System
Hoist Lift System
Hoist Lift System
Uni-Hoist Electric Stationary
Uni-Hoist Electric Stationary
Pharmaceutical Hoist
ATEX Hoist
Pharmaceutical Hoist
pharmaceutical lift system

Key Information

Hanningfield Uni-Hoist lift systems are designed for the handling of containers such as Intermediate Bulk Containers (IBCs), drums, containers and bins.

  • Engineered for safe and repeatable operation in hygienic environments
  • Eliminate operator strain
  • ‘Raise, Lower, Rotate, Invert, Dock’ at the push of a button
  • Versatile designs for handling drums, IBCs, machines – almost anything can be lifted
Choose a Model Download Brochure
Uni-Hoist Electric Stationary
pharmaceutical hoist
ATEX Hoist
pharmaceutical hoist
Hoist Lift System
Pharmaceutical Hoist Lift System
Hoist Lift System
Hoist Lift System
Hoist Lift System
Uni-Hoist Electric Stationary
Uni-Hoist Electric Stationary
Pharmaceutical Hoist
ATEX Hoist
Pharmaceutical Hoist
pharmaceutical lift system
Uni-Hoist Electric Stationary
pharmaceutical hoist
ATEX Hoist
pharmaceutical hoist
Hoist Lift System
Pharmaceutical Hoist Lift System
Hoist Lift System
Hoist Lift System
Hoist Lift System
Uni-Hoist Electric Stationary
Uni-Hoist Electric Stationary
Pharmaceutical Hoist
ATEX Hoist
Pharmaceutical Hoist
pharmaceutical lift system

Features & Benefits

Stainless Steel Construction

316L contact parts for use in sanitary applications

Various Power Options

Choose a power option to suit the site environment

ATEX / Ex-proof

ATEX (ex-proof) versions available

Technical Description

Design & Operation
The lift column can also be used to manoeuvre process machinery such as vacuum conveyors, mills, lump-breakers etc.

With hundreds of installations worldwide, Hanningfield’s stainless steel lift columns are engineered for safe and repeatable operation in hygienic environments. The hoist lift systems utilise either a lead-screw or chain lifting mechanism, with fail-safe features to prevent the load slipping in case of malfunction.

Construction
As standard, the Uni-Hoist is manufactured from 304 stainless steel (150 grit) and is designed for use in hygienic GMP environments, with smooth surfaces and all aesthetic welds polished.

Documentation
The Uni-Hoist can be supplied with full validation documentation (FS/DS, FAT, SAT, IQ/OQ) and 3.1 mill certificates to EN10204 if required.

Customise Your Hoist
The Uni-Hoist can be modified to accommodate any load type (lifting forks, clamp arm, squeeze cone, platform, hook etc.). Hoists can be powered by electric, pneumatic or manual hand-winding. Meanwhile, the hoists can also be stationary (mounted to floor, wall, floor-to-ceiling etc.) or mobile on a trolley with castors.

Models
Considering these variations, the Uni-Hoist is available in six standard models to satisfy every application (with custom built hoists also available):

  • Uni-Hoist HES (Hoist Electric Stationary)
  • Uni-Hoist HEM (Hoist Electric Mobile)
  • Uni-Hoist HMS (Hoist Manual Stationary)
  • Uni-Hoist HMM (Hoist Manual Mobile)
  • Uni-Hoist HPS (Hoist Pneumatic Stationary)
  • Uni-Hoist HPM (Hoist Pneumatic Mobile)
  • Customised Lift Systems
  • Choosing the Right Hoist System
    Complete our Hoist RFQ below and we’ll send you a quote for the lift system that is best suited to your application.

    Specification


    Medium Duty (SWL ≤ 750kgs)
    Heavy Duty (SWL ≤ 2000kgs)
    Rotation (of Base)
    Power Supply
    Uni-Hoist HEM
    Medium Duty (SWL ≤ 750kgs)
    No
    Heavy Duty (SWL ≤ 2000kgs)
    No
    Rotation (of Base)
    No
    Power Supply
    Electric (3-phase)
    Uni-Hoist HES
    Medium Duty (SWL ≤ 750kgs)
    Yes
    Heavy Duty (SWL ≤ 2000kgs)
    Yes
    Rotation (of Base)
    Yes
    Power Supply
    Electric (3-phase)
    Uni-Hoist HMM
    Medium Duty (SWL ≤ 750kgs)
    No
    Heavy Duty (SWL ≤ 2000kgs)
    No
    Rotation (of Base)
    No
    Power Supply
    None / Manual
    Uni-Hoist HMS
    Medium Duty (SWL ≤ 750kgs)
    No
    Heavy Duty (SWL ≤ 2000kgs)
    No
    Rotation (of Base)
    Yes
    Power Supply
    None / Manual
    Uni-Hoist HPM
    Medium Duty (SWL ≤ 750kgs)
    No
    Heavy Duty (SWL ≤ 2000kgs)
    No
    Rotation (of Base)
    No
    Power Supply
    Compressed Air
    Uni-Hoist HPS
    Medium Duty (SWL ≤ 750kgs)
    No
    Heavy Duty (SWL ≤ 2000kgs)
    No
    Rotation (of Base)
    Yes
    Power Supply
    Compressed Air
    Light Duty (SWL ≤ 250kgs)
    Yes
    Raise and Lower (of Load)
    Yes
    Inversion (of Load)
    Yes
    Country of Design
    United Kingdom
    Country of Manufacture
    United Kingdom

    Videos

    Typical Applications

    Lifting IBC above Tablet Press

    The Uni-Hoist HES can be used to raise and dock IBCs above a process machine for discharging powder directly into the loading hopper.

    Duplex Hoist for Fast IBC Changeover

    The HES Duplex features two independent lifting platforms; allowing the unloading of empty IBCs & loading of full IBCs onto the passive half while the active half discharges, minimising changeover time between batches.

    Raise and Lower of Mixer

    The Uni-Hoist can be used for the simple raise and lower of mixers into vessels.

    Downloads

    Brochure
    Uni-Hoist Brochure
    Download

    Choose a Model

    Uni-Hoist HEM

    The Hanningfield Uni-Hoist HEM (Hoist Electric Mobile) is an electric powered, portable lifting device for the handling of containers, drums, IBCs etc. The maximum SWL (safe working load) of the Uni-Hoist HEM is 250kg.

    Uni-Hoist HES

    The Hanningfield Uni-Hoist HES (Hoist Electric Stationary) is an electrically powered lifting column, with different arm attachments for the handling of IBCs, drums, containers and process machinery (e.g. mills, mixers, vacuum conveyors etc.).

    Uni-Hoist HMM

    The Hanningfield Uni-Hoist HMM (Hoist Manual Mobile) is a manually powered hand-wound lifting device for the handling of various loads.

    Uni-Hoist HMS

    The Hanningfield Uni-Hoist HMS (Hoist Manual Stationary) is a hand-wound lifting device for the simple raise and lower of light loads.

    Uni-Hoist HPM

    The Hanningfield Uni-Hoist HPM (Hoist Pneumatic Mobile) is a portable, air-operated lifting device for the handling of containers, drums, IBCs etc.

    pharmaceutical lift

    Uni-Hoist HPS

    The Hanningfield Uni-Hoist HPS (Hoist Pneumatic Stationary) is an air-operated lifting column, with different arm attachments for the handling of IBCs, drums, containers and process machinery.
