HomeProductsSifters (Centrifugal Screening)

Sifters (Centrifugal Screening)

The Hanningfield Kwik-Sift offers fast and effective powder screening, helping to guarantee material integrity through the capture of alien objects.
Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
Centrifugal sifter
centrifugal powder sifting
Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal Sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
Centrifugal sifter
centrifugal powder sifting
Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal Sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
pharmaceutical Centrifugal sifter

Key Information

  • Security screening at higher throughput than traditional sieving
  • Suitable for delumping and deagglomeration of friable materials (with use of spoiler arm)
  • Can be mounted in-line for feeding downstream process (gravity feed or vacuum transfer)
Choose a Model Download Brochure
Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
Centrifugal sifter
centrifugal powder sifting
Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal Sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
Centrifugal sifters
centrifugal powder sifting
pharmaceutical Centrifugal sifter
Centrifugal sifter
centrifugal powder sifting
Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal sifter
pharmaceutical Centrifugal Sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
Centrifugal sifter
pharmaceutical Centrifugal sifter

Features & Benefits

Stainless Steel

316L contact parts

FDA Compliant

All seals FDA compliant (silicone, PTFE etc.)

Various Mesh Sizes

Various mesh sizes available for multi-product usage

ATEX / Ex-proof

ATEX (ex-proof) versions available

Technical Description

Design & Operation
The Hanningfield Kwik-Sift offers fast and effective powder screening, helping guarantee material integrity through the capture of alien objects (such as nuts, bolts, washers, cable ties). The rotating mesh drum creates a centrifugal screening action, with powder passing through the mesh while retaining those objects larger than the hole aperture. For achieving different grades of separation, various drum mesh sizes are available to meet different application requirements.

The unit can incorporate a single or dual spoiler arm arrangement for performing simple de-lumping of agglomerated material. The spoiler arm simply clamps onto the existing chute via a tri-clover.

Construction
As standard, all contact parts are manufactured from 316L stainless steel (180 grit), with FDA compliant seals, gaskets etc. Non-contact parts such as frames, motor covers and control panels are manufactured from 304 stainless steel (150 grit).

All standard materials of construction and surface finishes can be upgraded or downgraded upon request.

Customise Your Sifter

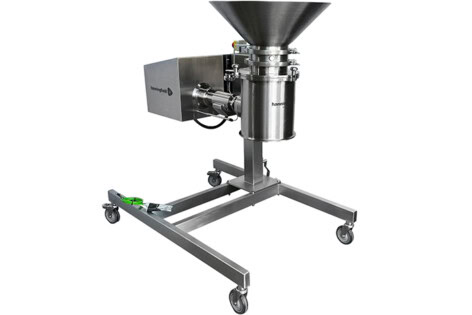

Various mounting solutions are available for the sifters (mobile frame, swing-arm, fixed post, hoist mounted etc.) and it can be customised with a selection of inlet and outlet configurations including hand-feed chute, valve assemblies, tri-clover connections, vacuum adaptors or any other bespoke design required for process integration.

Documentation
All equipment can be supplied with full validation documentation (FS/DS, FAT, SAT, IQ/OQ) and 3.1 mill certificates to EN10204.

Specification


Typical Capacities (product dependant)
Screen Diameter
Standard Motor
Approx. Weight
Kwik-Sift KS05
Typical Capacities (product dependant)
5 - 500 kgs/hr (10 - 1100 lbs/hr)
Screen Diameter
83mm (3.25in)
Standard Motor
0.375 kW (0.5 HP)
Approx. Weight
40 kgs (90 lbs)
Kwik-Sift KS10
Typical Capacities (product dependant)
350 - 7500 kgs/hr (800 - 16500 lbs/hr)
Screen Diameter
127mm (5")
Standard Motor
1.5 kW (2 HP)
Approx. Weight
140 kgs (310 lbs)
Kwik-Sift KS20
Typical Capacities (product dependant)
1100 - 23000 kgs/hr (2400 - 52000 lbs/hr)
Screen Diameter
203mm (8")
Standard Motor
4.0 kW (5 HP)
Approx. Weight
160 kgs (350 lbs)
Typical Noise Level
<78dB
Contact Parts
316L stainless steel (1.4404)
Non-Contact Parts
304 stainless steel (1.4301)
Country of Design
United Kingdom
Country of Manufacture
United Kingdom

Videos

Typical Applications

Sifting of Powder from Drums, IBCs, Big Bags etc.

The Kwik-Sift can be fed by hand, or from drums, IBCs, big bags etc. The unit rapidly sifts good material, while retaining alien objects (nuts, bolts, washers, cable ties).

Sifting into Drum

The Kwik-Sift can be hand-fed allowing immediate discharge into the drum below (various methods of containment are available).

In-Line Vacuum Sifting

In-line vacuum transfer from a Sack Tip Station and through a Kwik-Sift to achieve automated and dust-free sifting. This also helps reduce material temperature as processing is quickened.

Capturing Foreign Objects

A Kwik-Sift is commonly used for powder screening, helping guarantee material integrity through the capture of alien objects (such as nuts, bolts, washers, cable ties).

Downloads

Kwik-Sift Brochure Brochure
Kwik-Sift Brochure
Download
Technical Article
Sifting Agglomerated Material
Download

Choose a Model

Kwik-Sift KS05

The Hanningfield KS05 offers fast and effective powder screening, helping guarantee material integrity through the capture of alien objects.

Kwik-Sift KS10

The Hanningfield KS10 offers fast and effective powder screening, helping guarantee material integrity through the capture of alien objects.

centrifugal sifting machine

Kwik-Sift KS20

The Hanningfield KS20 offers fast and effective powder screening, helping guarantee material integrity through the capture of alien objects.

Frequently Asked Questions (FAQs)

To ensure material integrity before downstream processing. Unwanted alien objects (twist ties, zip ties, paper, plastic etc.) are retained in the sifter basket, allowing only purified and screened material to pass.

A traditional sieve has a flat mesh deck, using vibration and gravity to pass material. Instead, the Kwik-Sift features a spinning basket, using centrifugal force to pass material through the screen / mesh.

Yes, by utilising centrifugal force rather than gravity, the Kwik-Sift will significantly outperform traditional sieve capacity on almost all products. Some sticky, hygroscopic or heat sensitive materials may be better suited to a vibratory sieve.

No. Unlike a vibratory sieve, the Kwik-Sift does not have the means to separate oversize material. Oversize material will remain in the sifter basket.

Yes, with the addition of a breaker-bar, the Kwik-Sift can be used for de-lumping. Although, if size reduction is the primary objective, you should consider a milling machine instead.

Screen size can typically be changed in less than 2 minutes, by undoing 4 bolts, changing mesh, and re-tightening the bolts.

Yes, we can supply this machine to meet the most stringent zoning requirements, including ATEX Zone 0/20.
