Vacuum Conveyors

Hanningfield Uni-Vac vacuum conveyors are designed as a safe and convenient method for transferring powder.
pneumatic material conveying
pneumatic material conveying
pneumatic material conveying
powder conveying
Vacuum Transfer System
Vacuum Transfer System
Vacuum transfer system
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System

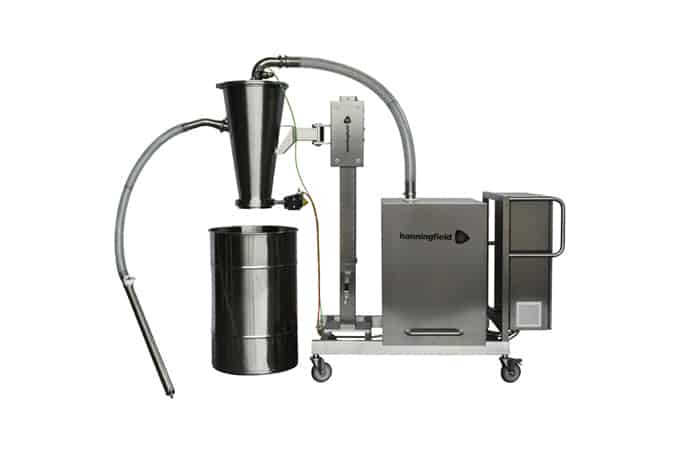

Vacuum conveyor
Vacuum Transfer System
Vacuum conveyor

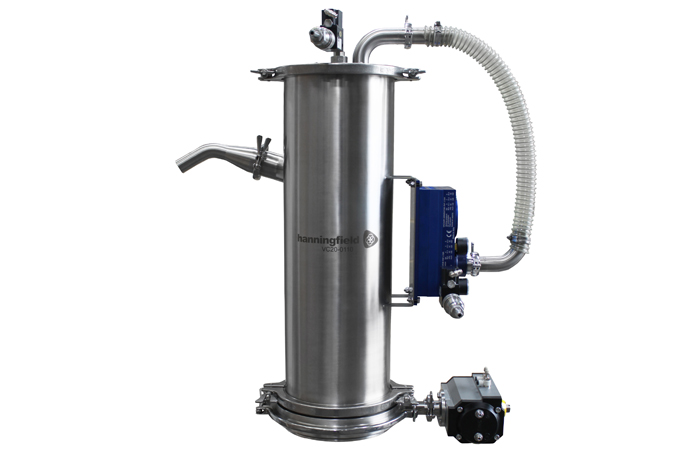

Vacuum Transfer System VC20

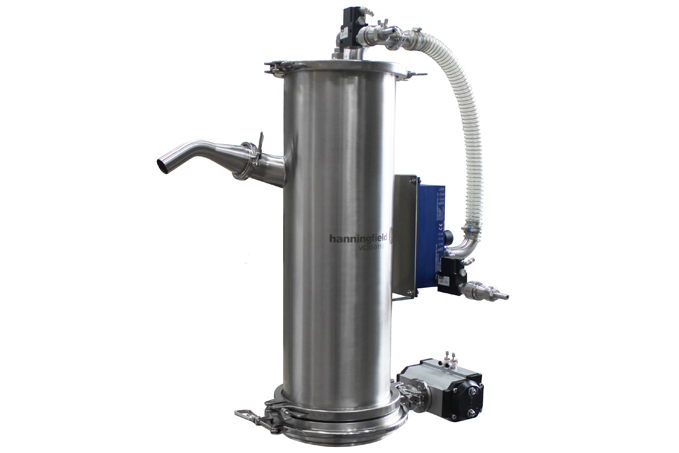

Vacuum Transfer System
pneumatic material conveying
pneumatic material conveying
pneumatic material conveying
powder conveying
Vacuum Transfer System
Vacuum Transfer System
Vacuum transfer system
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System VC20
Vacuum Transfer System

Key Information

Hanningfield Uni-Vac vacuum conveyors are designed as a safe and convenient method for transferring powder.

  • Automate and accelerate loading process
  • Dust-tight transfer of material from A to B
  • Reduce manual handling (horizontal and vertical transfer)
  • Suitable for powders, granules, flakes, pellets etc.
  • ATEX (ex-proof) versions available
  • Optional ‘stepless’ design for damage-free transfer of tablets or other fragile materials
Choose a Model Download Brochure
pneumatic material conveying
pneumatic material conveying
pneumatic material conveying
powder conveying
Vacuum Transfer System
Vacuum Transfer System
Vacuum transfer system
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System VC20
Vacuum Transfer System
pneumatic material conveying
pneumatic material conveying
pneumatic material conveying
powder conveying
Vacuum Transfer System
Vacuum Transfer System
Vacuum transfer system
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System
Vacuum conveyor
Vacuum Transfer System VC20
Vacuum Transfer System

Features & Benefits

Stainless Steel Construction

316L contact parts with FDA compliant seals

ATEX / Ex-proof

ATEX (ex-proof) versions available

Technical Description

Design & Operation
Hanningfield Uni-Vac vacuum conveyors are designed as a safe and convenient method for transferring powder. The system utilises a combination of vacuum and air (known as ‘Lean-Phase’ or ‘Dilute-Phase’) to transport powders, granules and other material.

The dust-tight sealed system prevents material contamination during the transfer process, while protecting the operator, process and environment from product exposure or accidental spillage (thereby minimising waste).

Choose the Right System for You
To find out what vacuum conveying system is best for you, complete our Vacuum Conveying RFQ below and we’ll send you a quote for the correct system.

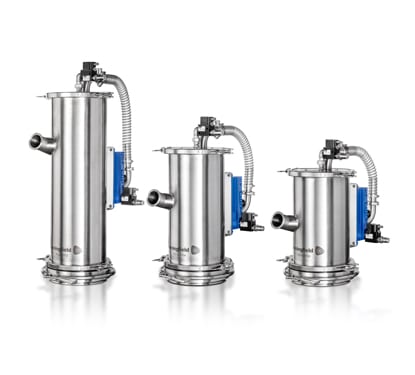

Uni-Vac VC-Series
This is our standard vacuum conveying system which is suited for the majority of process applications. It is also the best choice for ATEX environments.

Uni-Vac V-Series
If you are looking for a conveying solution that does not require compressed air to operate, then the V-Series is right for you. It is also the better option for process rooms with height restrictions.

Specification


Max Throughput (product dependant)
Hopper Diameter
Hopper Height
Hopper Capacity
Standard Hose Diameter
Uni-Vac V-Series V05
Max Throughput (product dependant)
300 kgs/hr (660 lbs/hr)
Hopper Diameter
270mm (10.6")
Hopper Height
600mm (23.6")
Hopper Capacity
5 litres
Standard Hose Diameter
1.0 / 1.5 inches
Uni-Vac V-Series V10
Max Throughput (product dependant)
900 kgs/hr (2000 lbs/hr)
Hopper Diameter
450mm (17.7")
Hopper Height
1000mm (39.3")
Hopper Capacity
10 litres
Standard Hose Diameter
1.5 inches
Uni-Vac V-Series V20
Max Throughput (product dependant)
1200 kgs/hr (2650 lbs/hr)
Hopper Diameter
450mm (17.7")
Hopper Height
1100mm (43.3")
Hopper Capacity
20 litres
Standard Hose Diameter
1.5 / 2.0 inches
Uni-Vac V-Series V30
Max Throughput (product dependant)
2000 kgs/hr (4500 lbs/hr)
Hopper Diameter
450mm (17.7")
Hopper Height
1400mm (55")
Hopper Capacity
30 litres
Standard Hose Diameter
1.5 / 2.0 inches
Uni-Vac V-Series V50
Max Throughput (product dependant)
3000 kgs/hr (6750 lbs/hr)
Hopper Diameter
450mm (17.7")
Hopper Height
1600mm (63")
Hopper Capacity
50 litres
Standard Hose Diameter
2 inches
Uni-Vac V-Series V100
Max Throughput (product dependant)
4000 kgs/hr (9000 lbs/hr)
Hopper Diameter
450mm (17.7")
Hopper Height
1700mm (67")
Hopper Capacity
100 litres
Standard Hose Diameter
2.5 / 3.0 inches
Uni-Vac VC-Series VC05
Max Throughput (product dependant)
300 kgs/hr (660 lbs/hr)
Hopper Diameter
254mm (10")
Hopper Height
490mm (19.25")
Hopper Capacity
5 litres
Standard Hose Diameter
1.5 inches
Uni-Vac VC-Series VC10
Max Throughput (product dependant)
900 kgs/hr (2000 lbs/hr)
Hopper Diameter
254mm (10")
Hopper Height
590mm (23.25")
Hopper Capacity
10 litres
Standard Hose Diameter
1.5 inches
Uni-Vac VC-Series VC20
Max Throughput (product dependant)
1200 kgs/hr (2650 lbs/hr)
Hopper Diameter
254mm (10")
Hopper Height
840mm (33")
Hopper Capacity
20 litres
Standard Hose Diameter
1.5 inches
Uni-Vac VC-Series VC30
Max Throughput (product dependant)
2000 kgs/hr (4500 lbs/hr)
Hopper Diameter
254mm (10")
Hopper Height
1090mm (43")
Hopper Capacity
30 litres
Standard Hose Diameter
1.5 inches
Contact Parts
316L stainless steel (1.4404)
Non-Contact Parts
304 stainless steel (1.4301)
Country of Design
United Kingdom
Country of Manufacture
United Kingdom

Videos

Typical Applications

Vacuum Transfer from Drum to Process Machine

The vacuum conveyor sucks material from the ground floor drum and up into the Uni-Vac hopper. Once full, the outlet valve opens and discharges the material into the machine.

Vacuum Transfer into a High Shear Mixer

Vacuum conveyors can be used as a dust-tight method to transfer powder from ground floor level into a high shear mixer.

In-Line Vacuum Milling

In-line vacuum transfer through an over-driven conical mill for achieving automated, dust-tight milling (same process can be achieved with an under-driven conical mill).

In-Line Vacuum Sieving

Vacuum conveying can be used to transfer material through a sieve into a downstream process or container.

Vacuum Transfer into a Vessel

Vacuum conveying can be used to transfer material from a ground-floor drum into a vessel or tank (with modifications this can be made suitable for pressurised vessels).

Unloading a Fluid Bed Dryer

Vacuum conveying can be used to transfer material from a fluid bed dryer after the drying process is complete (shown here with an optional in-line mill for improved PSD).

Downloads

Choose a Model

Uni-Vac V-Series V05

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V05 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

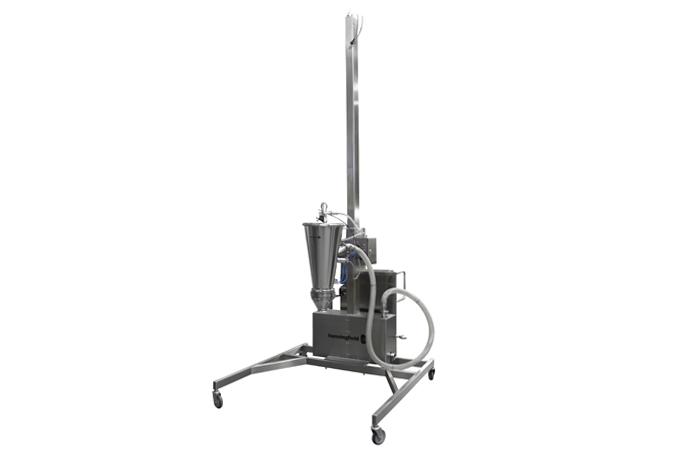

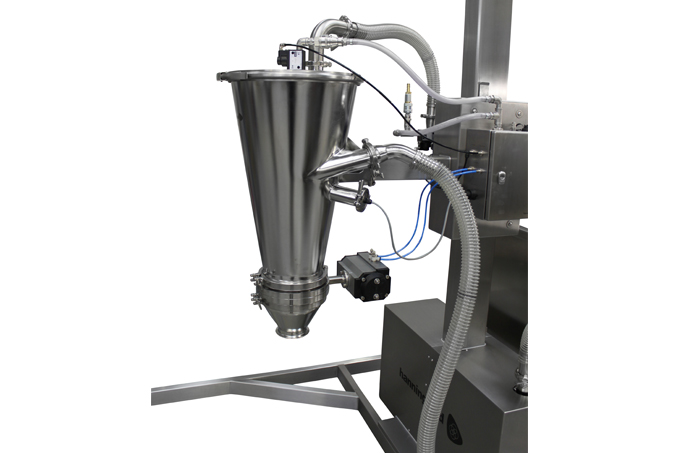

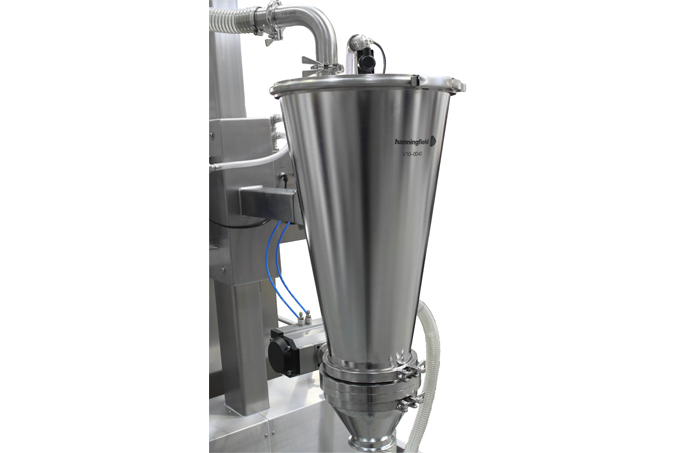

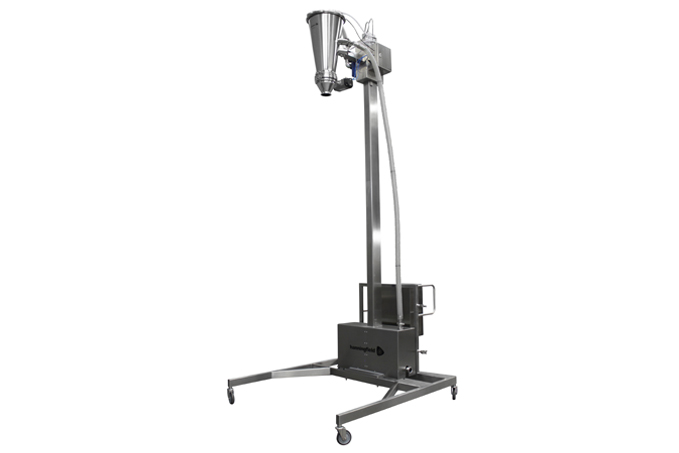

Uni-Vac V-Series V10

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V10 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

Uni-Vac V-Series V20

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V20 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

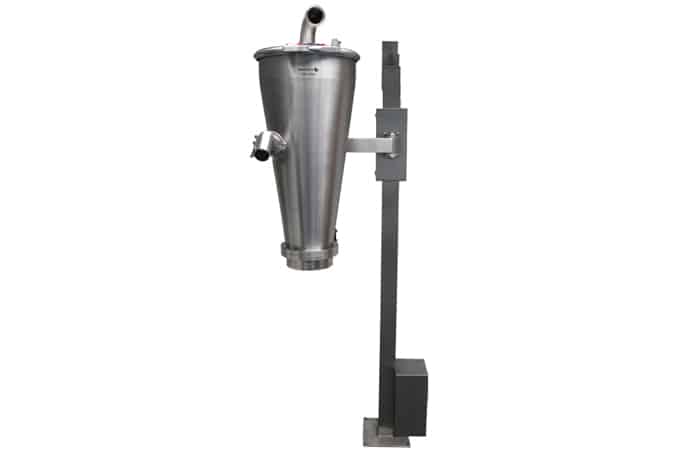

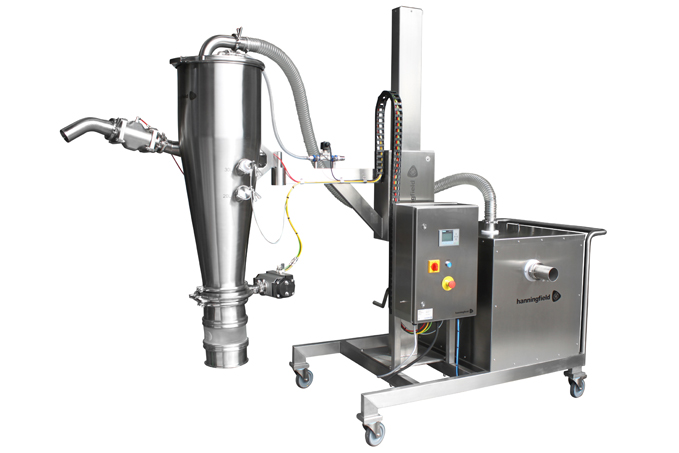

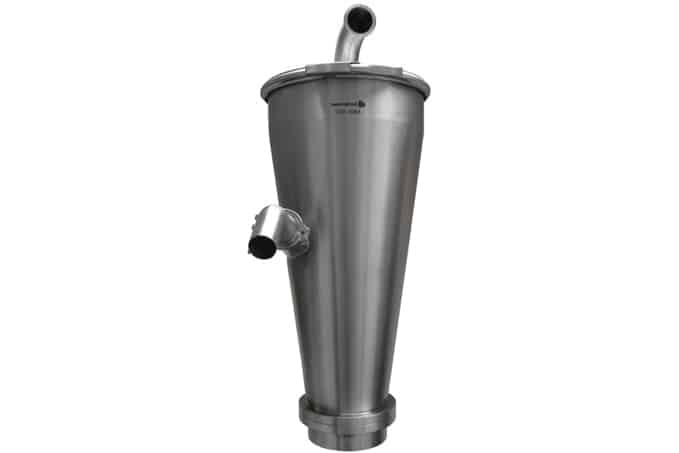

Uni-Vac V-Series V30

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V30 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

powder conveying

Uni-Vac V-Series V50

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V50 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

Uni-Vac V-Series V100

Part of the Uni-Vac ultra-hygienic ‘V-Series’ of vacuum conveyors, the V100 consists of a rolled and seam welded hopper body (all welds removed), which can be customised to suit any requirement.

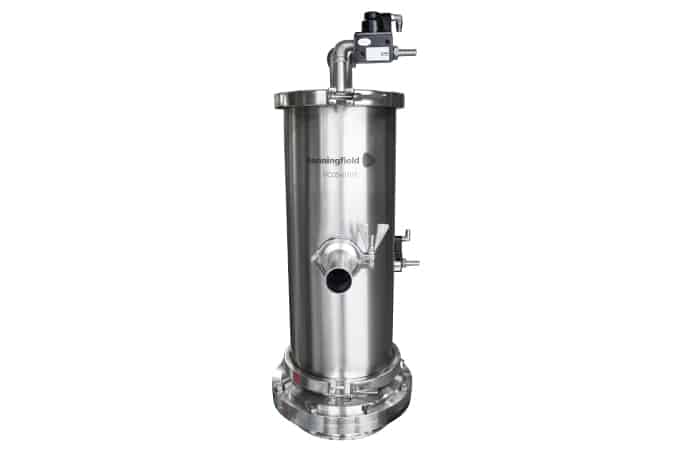

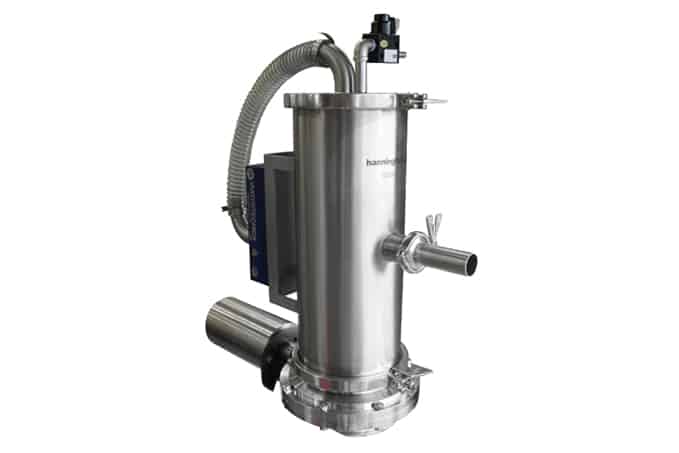

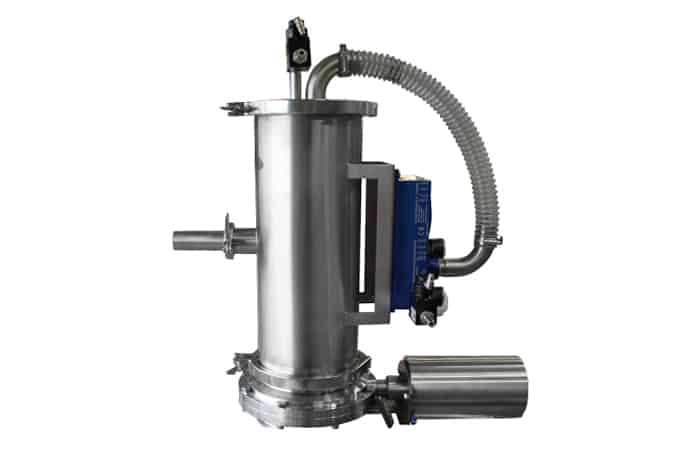

Vacuum Conveyor VC05

Uni-Vac VC-Series VC05

Part of the Uni-Vac hygienic ‘VC-Series’ of vacuum conveyors VC05 has a crevice-free, GMP design.

powder conveying

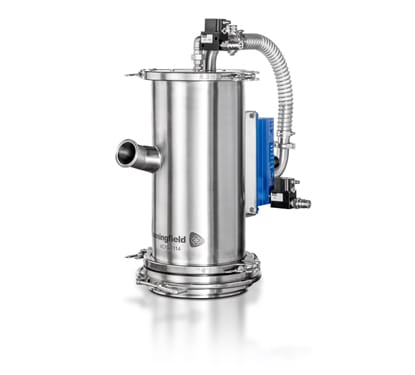

Uni-Vac VC-Series VC10

Part of the Uni-Vac hygienic ‘VC-Series’ of vacuum conveyors VC10 has a crevice-free, GMP design.

powder conveying

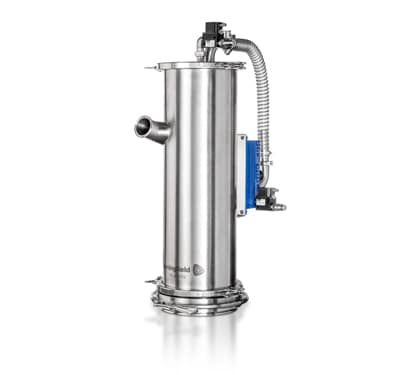

Uni-Vac VC-Series VC20

Part of the Uni-Vac hygienic ‘VC-Series’ of vacuum conveyors VC20 has a crevice-free, GMP design.

Uni-Vac VC-Series VC30

Part of the Uni-Vac hygienic ‘VC-Series’ of vacuum conveyors VC30 has a crevice-free, GMP design.

Request more information

MegaphoneLooking to request a quote? Find our RFQ form here.
