Uni-Mill M60-B

The Hanningfield Uni-Mill M60-B is designed for the highest capacity production applications, typically milling bulk material.
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B

Key Information

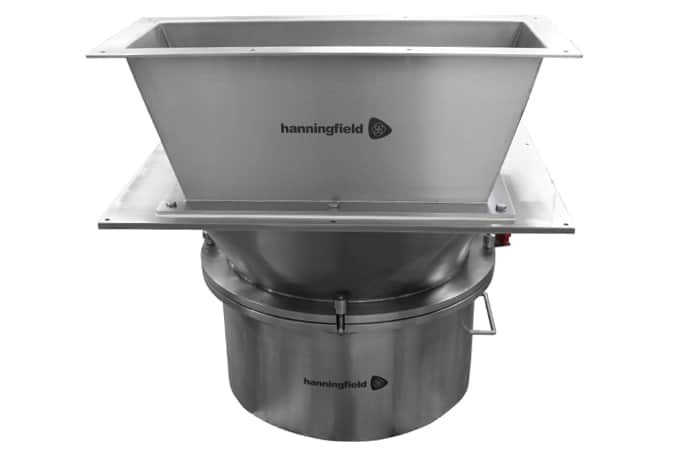

The Hanningfield Uni-Mill M60-B is designed for the highest capacity production applications, typically milling bulk material.  This unit features a 609mm screen, enabling a throughput up to 7,200 kgs/hr (depending on application specifics). As standard, the M60-B inlet size is 560 x 280mm, with a 660mm diameter beaded outlet shroud (inlet / outlet configuration can be modified to suit any requirement). The M60-B is supplied with a 15.0kW motor, set to a standard speed of 480RPM (variable speed available).

Request a quote Download Data Sheet
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B
Uni-Mill M60-B

Technical Description

As with all models in the Uni-Mill ‘over-driven’ series, the M60-B conical mill is supplied with a spacer set; this enables the operator to set the gap distance between the screen and impeller for achieving optimal milling (for spacer-less mills, please see our under-driven series). Tooling can be customised including screen hole size, screen hole shape (Round-Hole, Square-Hole, Grater-Hole) and impeller type (Round-Bar, Square Bar).

The standard M60-B design weighs approximately 475kgs (based on mobile frame mounting). The unit can be supplied with various mounting solutions, including mobile frame, fixed-stand, hoist-mounted, or free-standing.

Specification

Max Throughput (product dependant)7200 kgs/hr (16000 lbs/hr)
Screen Diameter609mm (24")
Standard Motor15 kW (20 HP)
Approx. Weight475 kgs (1045 lbs)
Standard Speed480 RPM
Lowest Achievable Particle SizeApprox. 150 microns (80 mesh)
Typical Noise Level<78dB
Contact Parts316L stainless steel (1.4404)
Non-Contact Parts304 stainless steel (1.4301)
Country of DesignUnited Kingdom
Country of ManufactureUnited Kingdom

Downloads

Uni-Mill M60-B Data Sheet Data Sheet
Uni-Mill M60-B
Download

Choose another Model

Uni-Mill M10-B

The Hanningfield Uni-Mill M10-B is designed for low capacity production applications.

Uni-Mill M20-B

The Hanningfield Uni-Mill M20-B is designed for high capacity production applications.

Uni-Mill M30-B

The Hanningfield Uni-Mill M30-B is designed for very high capacity production applications.
