Key Information

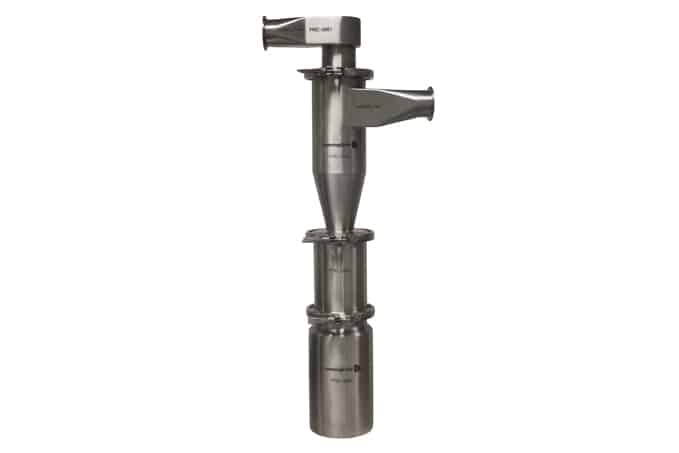

The Hanningfield Uni-Dust Type 5 cyclone is designed to accommodate an airflow of 100 – 150 m3/hr (59 – 88 CFM).
Technical Description

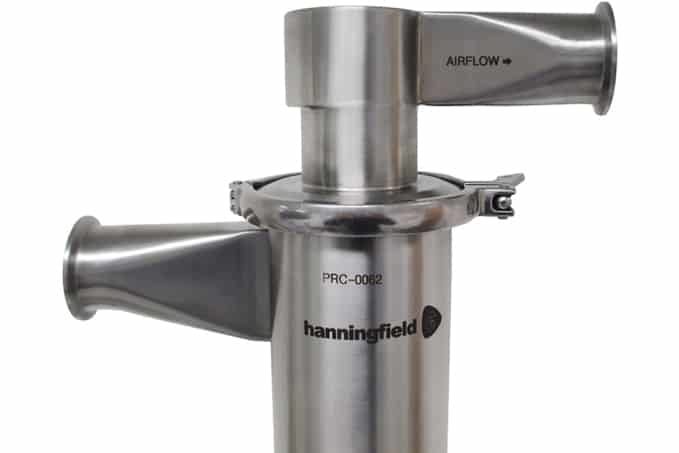

The Type 5 features a 2.0″ (50.8mm) inlet and outlet, with a 4.0″ (101.6mm) body diameter. The outlet catchpot can be customised to suit application product loss, typically to hold a capacity of 3 – 50 litres.
Fully assembled, the unit weighs approximately 6.5kgs (including catch-pot and all Tri-Clover clamps). The overall height of the cyclone is approximately 700mm (without catchpot), with a maximum footprint diameter of 305mm (measurement from inlet to outlet when diametrically opposed).
As standard, all contact parts are manufactured from 316L stainless steel (180 grit), with FDA compliant seals, gaskets etc. Non-contact parts such as frames, motor covers and control panels are manufactured from 304 stainless steel (150 grit). All standard materials of construction and surface finishes can be upgraded or downgraded upon request.
