Key Information

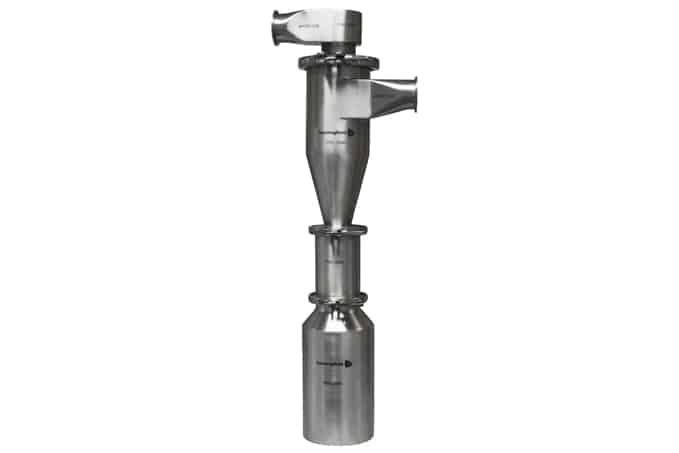

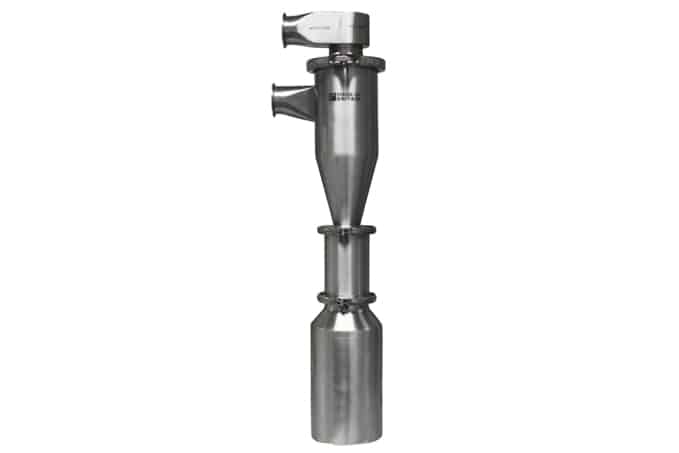

The Hanningfield Uni-Dust Type 10 cyclone is designed to accommodate an airflow of 150 – 250 m3/hr (88 – 147 CFM).
Technical Description

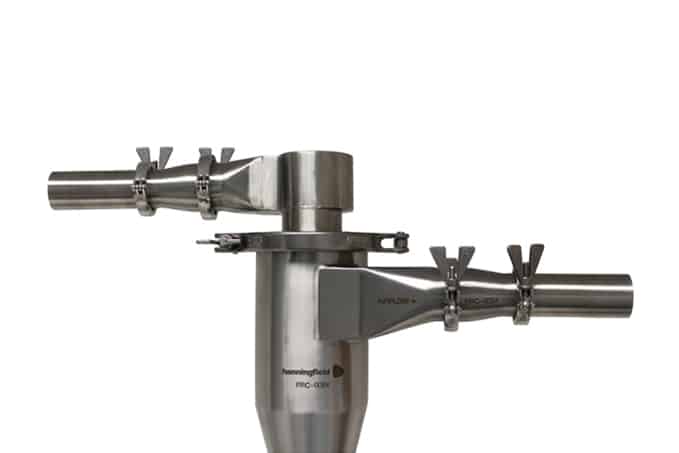

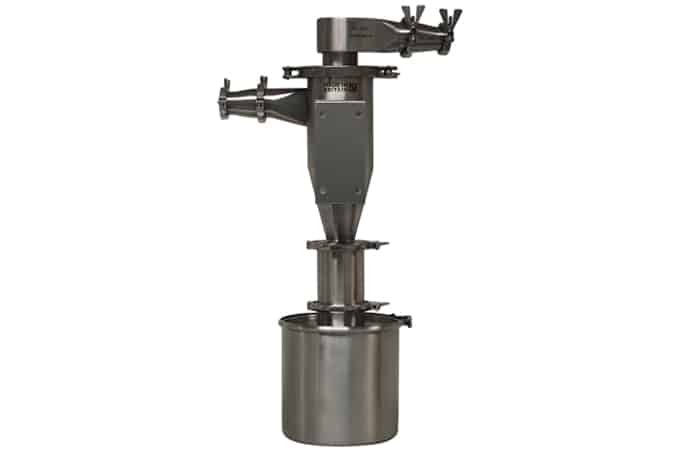

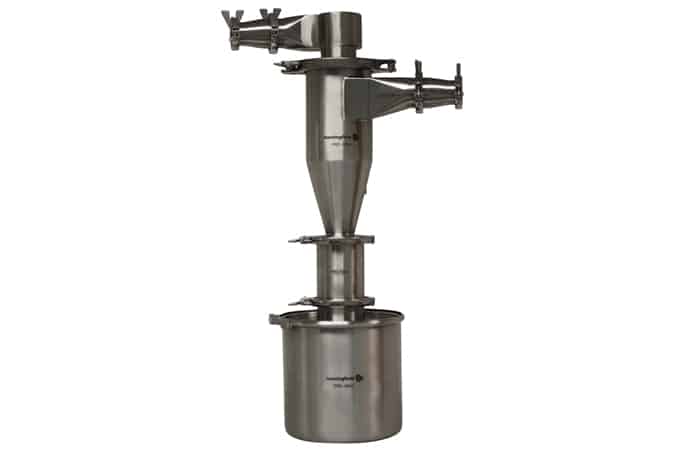

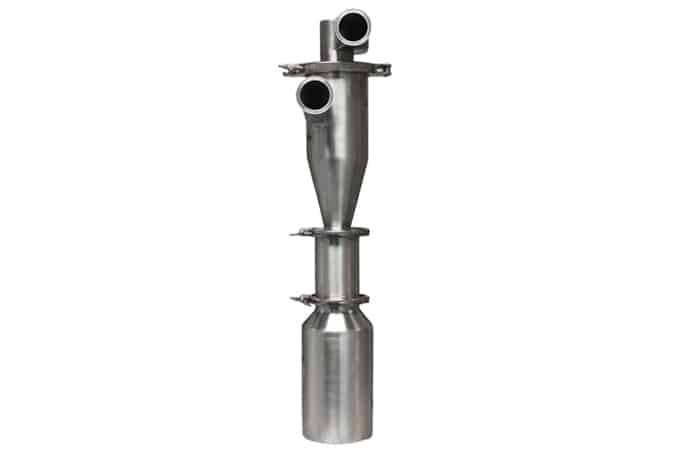

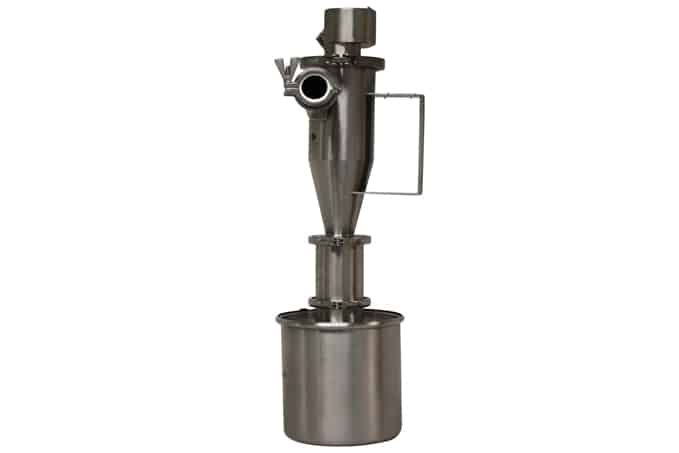

The Type 10 features a 2.5″ (63.5mm) inlet and outlet, with a 5.5″ (139.7mm) body diameter. The outlet catchpot can be customised to suit application product loss, typically to hold a capacity of 3 – 50 litres.
As standard, all contact parts are manufactured from 316L stainless steel (180 grit), with FDA compliant seals, gaskets etc. Non-contact parts such as frames, motor covers and control panels are manufactured from 304 stainless steel (150 grit).
All standard materials of construction and surface finishes can be upgraded or downgraded upon request.
Specification
Approx. Weight18 kgs (40 lbs)
Typical Noise Level0 dB (no moving parts / no mechanical noise generated)
Contact Parts316L stainless steel (1.4404)
Non-Contact Parts304 stainless steel (1.4301)
Country of DesignUnited Kingdom
Country of ManufactureUnited Kingdom
Airflow Range150-250 m3/hr (88-147 CFM)
Cyclone Body Diameter139.7mm (5½” T/C)
Inlet/Outlet Pipe Diameter63.5mm (2½” T/C)
Product Discharge Diameter101.6mm (4” T/C)
