Key Information

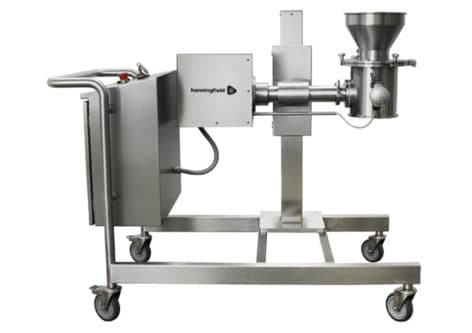

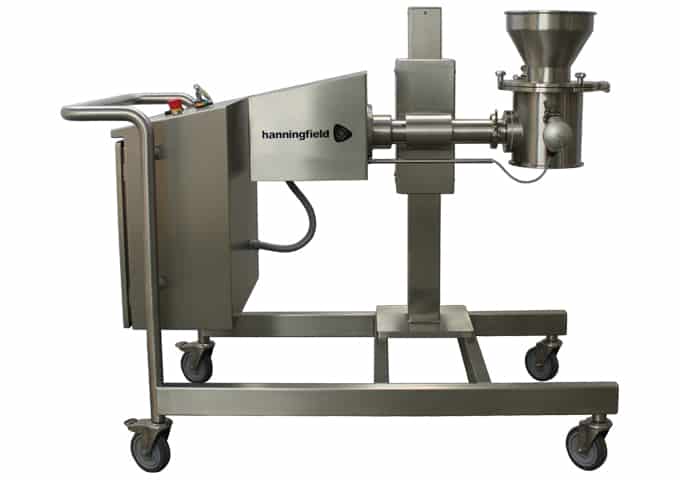

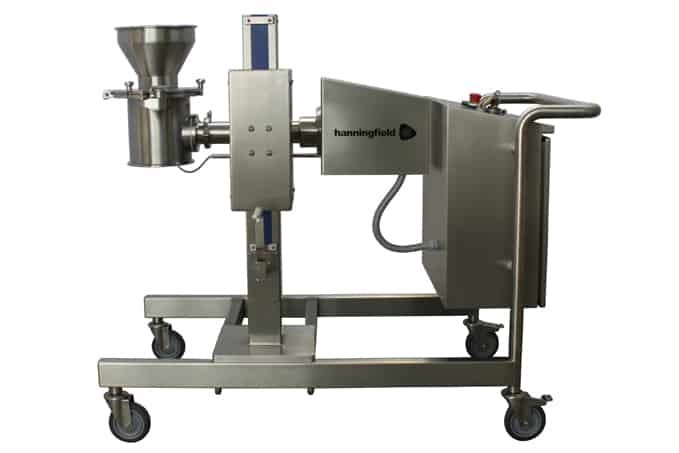

The Uni-Mill M10-U conical mill is designed for low capacity production applications. The unit features a 127mm screen, enabling a throughput up to 400 kgs/hr (depending on application specifics). As standard, the M10-U inlet size is 250mm diameter, with a 8″ tri-clover blank on the outlet (inlet / outlet configuration can be modified to suit any requirement). The M10-U is supplied with a 1.5kW motor, set to a standard speed of 2440RPM (variable speed available).
Technical Description

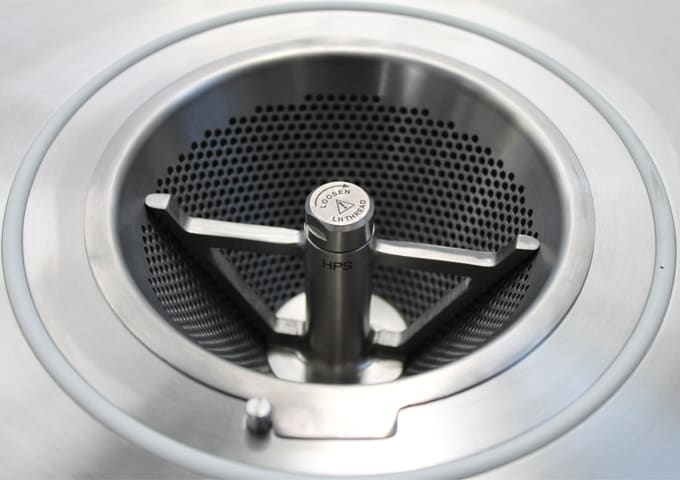

As with all models in the Uni-Mill ‘under-driven’ series, the M10-U screens and impellers do not require spacers to set the gap distance for optimal milling. Tooling can be customised including screen hole size, screen hole shape (Round-Hole, Square-Hole, Grater-Hole) and impeller type (Round-Bar, Square Bar).

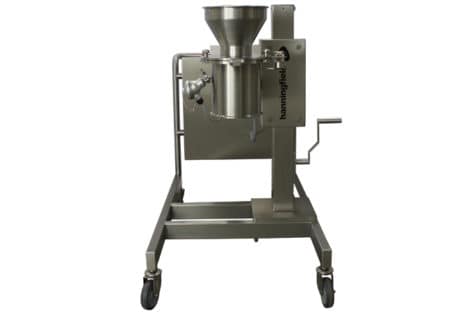

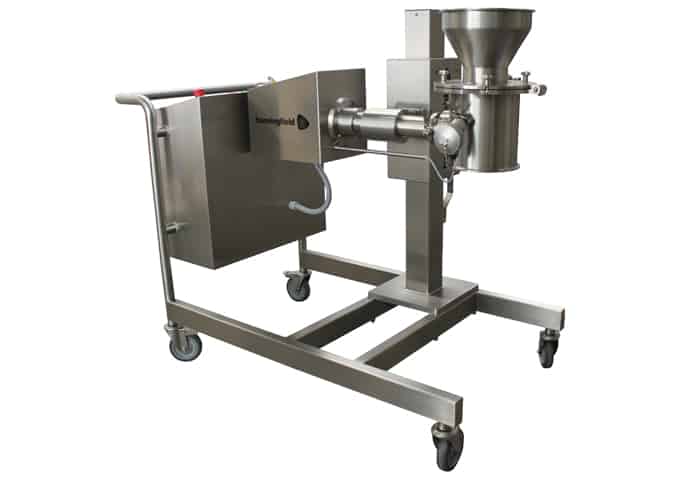

The standard M10-U design weighs approximately 140kgs (based on mobile frame mounting). The unit can be supplied with various mounting solutions, including mobile frame, swing-arm, fixed-stand, hoist-mounted, through-the-wall or free-standing.
Specification
Downloads
