Transfer it. Convey it. Automate it.
Hanningfield‘s Vacuum Transfer Systems are engineered for the safe and convenient method of transferring powders. With no moving parts, an easy-clean design and stainless steel construction, the Uni-Vac is specifically designed to meet the demanding needs of the process industries.
The system utilises a combination of vacuum and air (known as ‘Lean-Phase’ or ‘Dilute-Phase’) to transport powders, granules and other material. The dust-tight sealed system prevents material contamination during the transfer process, while protecting the operator, process and environment from product exposure or accidental spillage (thereby minimising waste).
Uni-Vac: Bespoke Design For Reactor Loading
While we offer standard models of our Uni-Vac Systems, there are some applications where these models do not suit a customer specification, and hence a bespoke design is required. On these occasions, Hanningfield are able to engineer and manufacture a solution to provide a vacuum transfer system which tailored to the customer’s exact requirements.

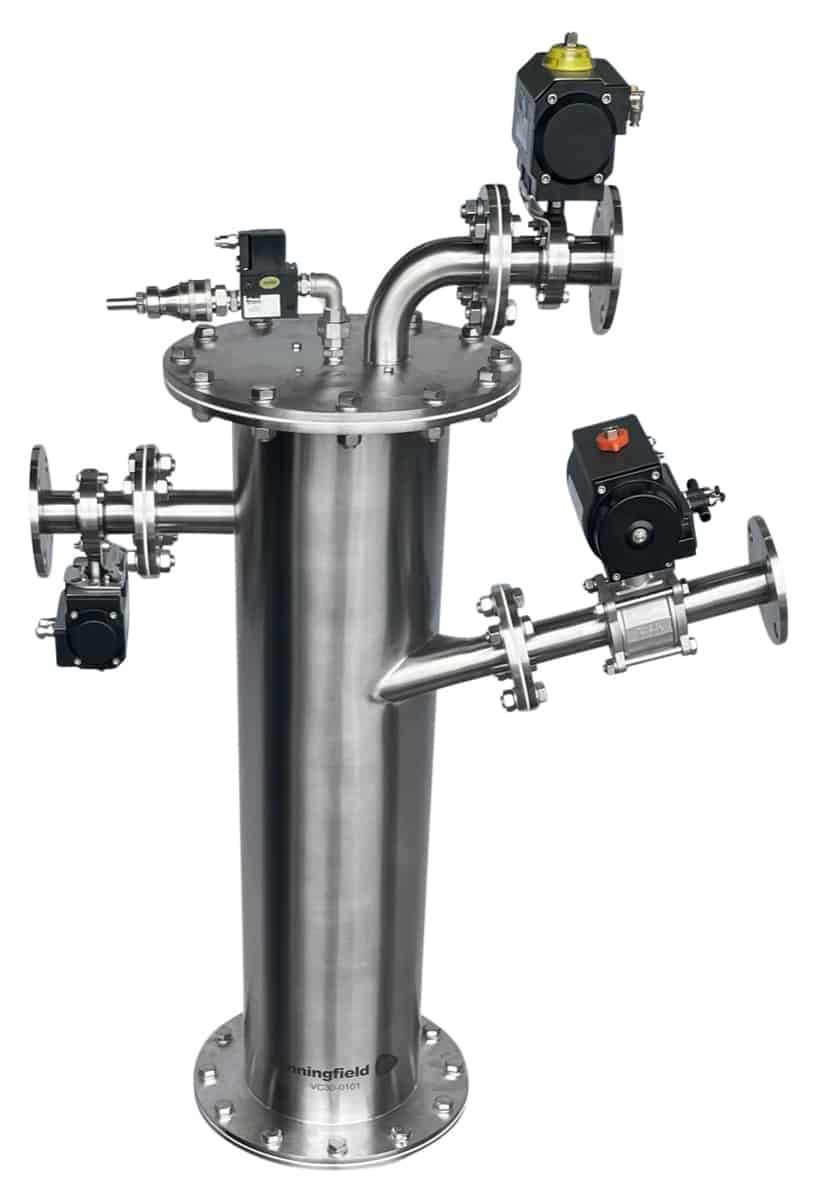

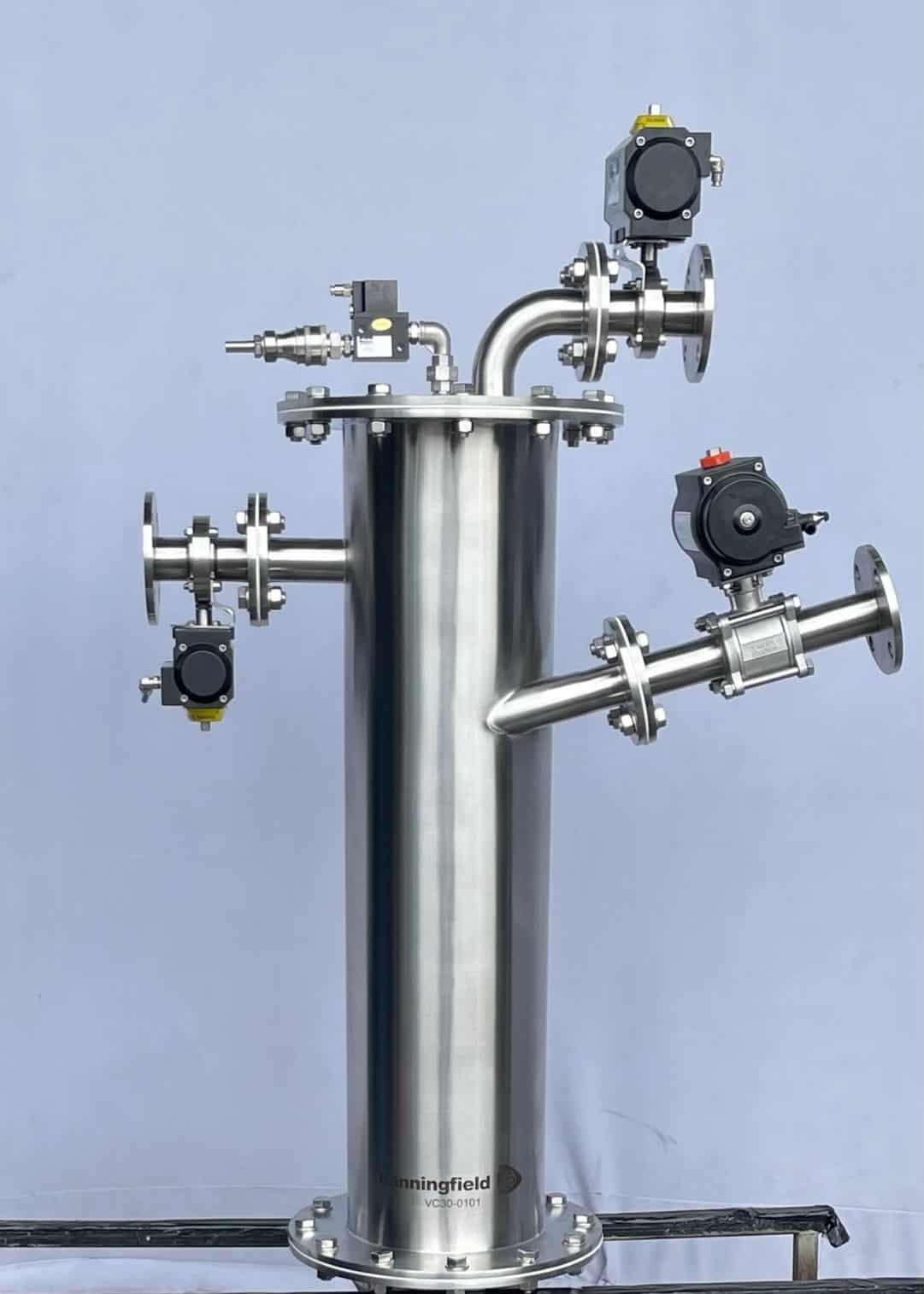

Our reactor loading vacuum transfer hoopers feature heavy-duty construction with ANSI-style flanges. The designs are suitable for use in ATEX or Class / Div (Groups C/D) and also feature nitrogen backwash. The units are manufactured using 316L stainless steel.
Take a look at the gallery below >>
Features & Benefits of the Uni-Vac
> Automate and accelerate your loading process
> Dust-tight transfer of material from A to B
> Reduce manual handling (horizontal and vertical transfer) and material loss
> Minimal risk of contamination
> Suitable for powders, granules, flakes, pellets etc.
> Stainless steel construction for use in sanitary applications
> ATEX (ex-proof) versions available
> Optional ‘stepless’ design for damage-free transfer of tablets or other fragile materials
Get in Touch
If you would like to speak to one of our experts regarding our Vacuum Transfer Systems or you would like a quote for one of our products, send us a message using our Contact Form or call us on +44 (0)1702 549 777.
