Recent Project: Hanningfield Sack Tip Station

Hanningfield‘s Sack Tip Station enables fast, safe and easy loading of downstream process. The unit offers a simple method for emptying sacks and bags etc, while controlling dust emissions caused during unloading. Our sack tip stations can be supplied with integrated dust extraction and feed bins can include agitator for bridge prevention.

Bespoke Sack Tip Station

Not all processes can be satisfied with an off-the-shelf solution. We understand that new equipment is often retrofitted to an existing process line and needs to be compatible with current equipment, room restrictions and factory layout.

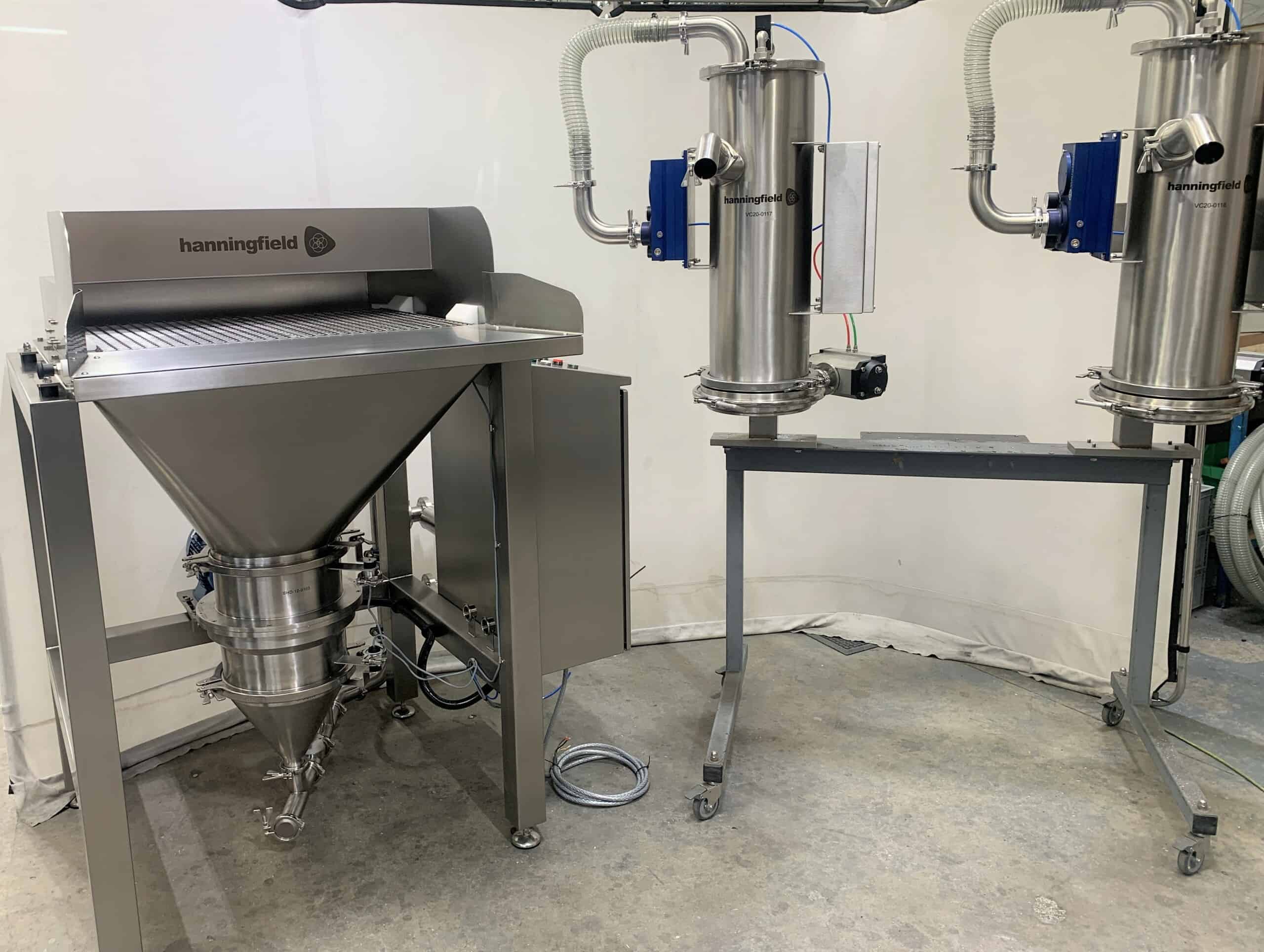

For a recent project, a bespoke sack tip station was manufactured to include a number of additional process features. The design included two vacuum lines feeding the sack tip station, with ‘line- select’ to charge two different mixers concurrently. The unit also included a pre-breaker for the initial size reduction of material. This helped to greatly reduce dissolution time, and increase overall efficiencies. The vacuum outlet featured in this design helped to increase throughput and reduce dust emissions during the unloading process.

Our team of engineering experts can work with you to discuss your unique processing issues and together design a solution to fit your setting.

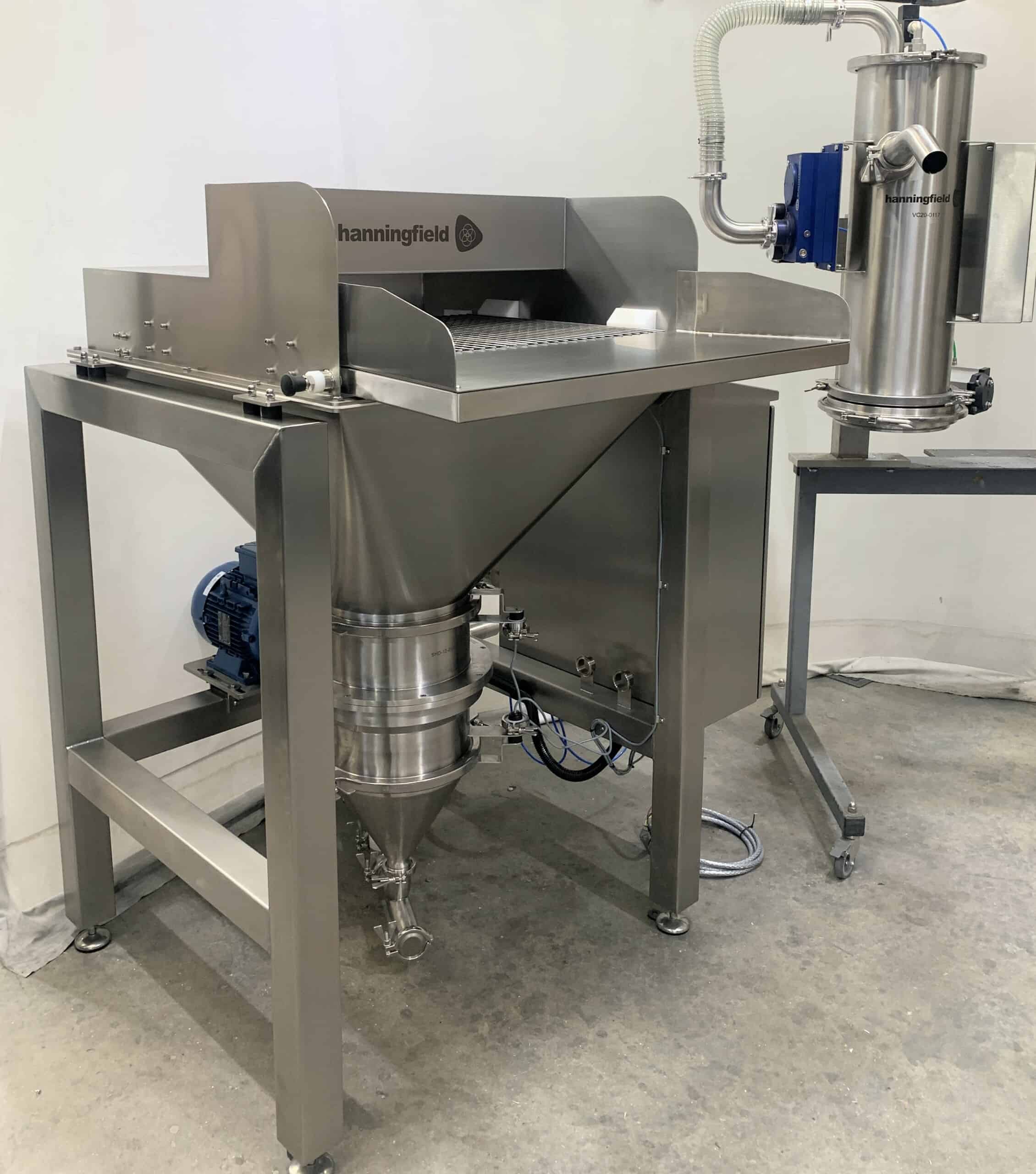

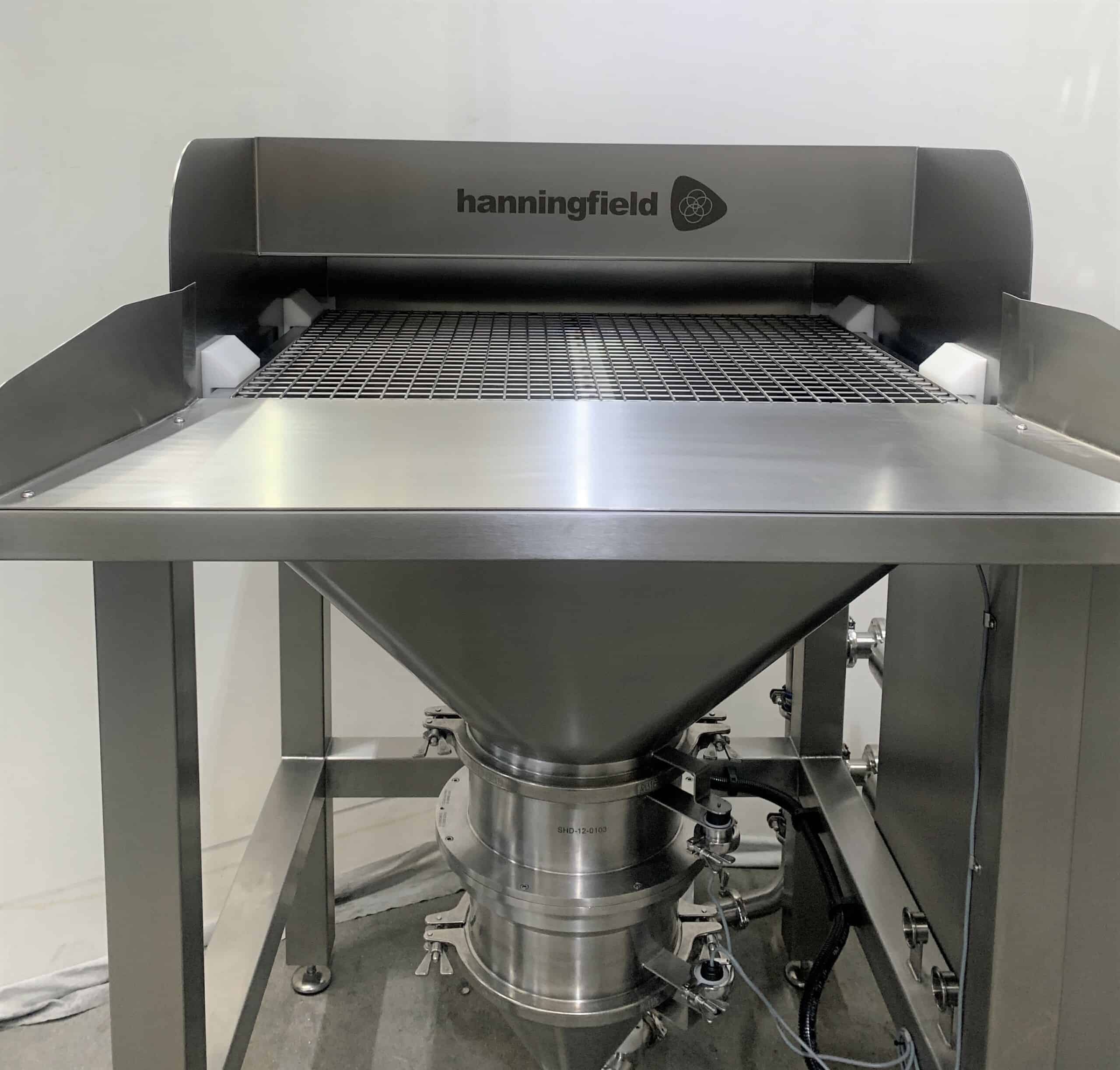

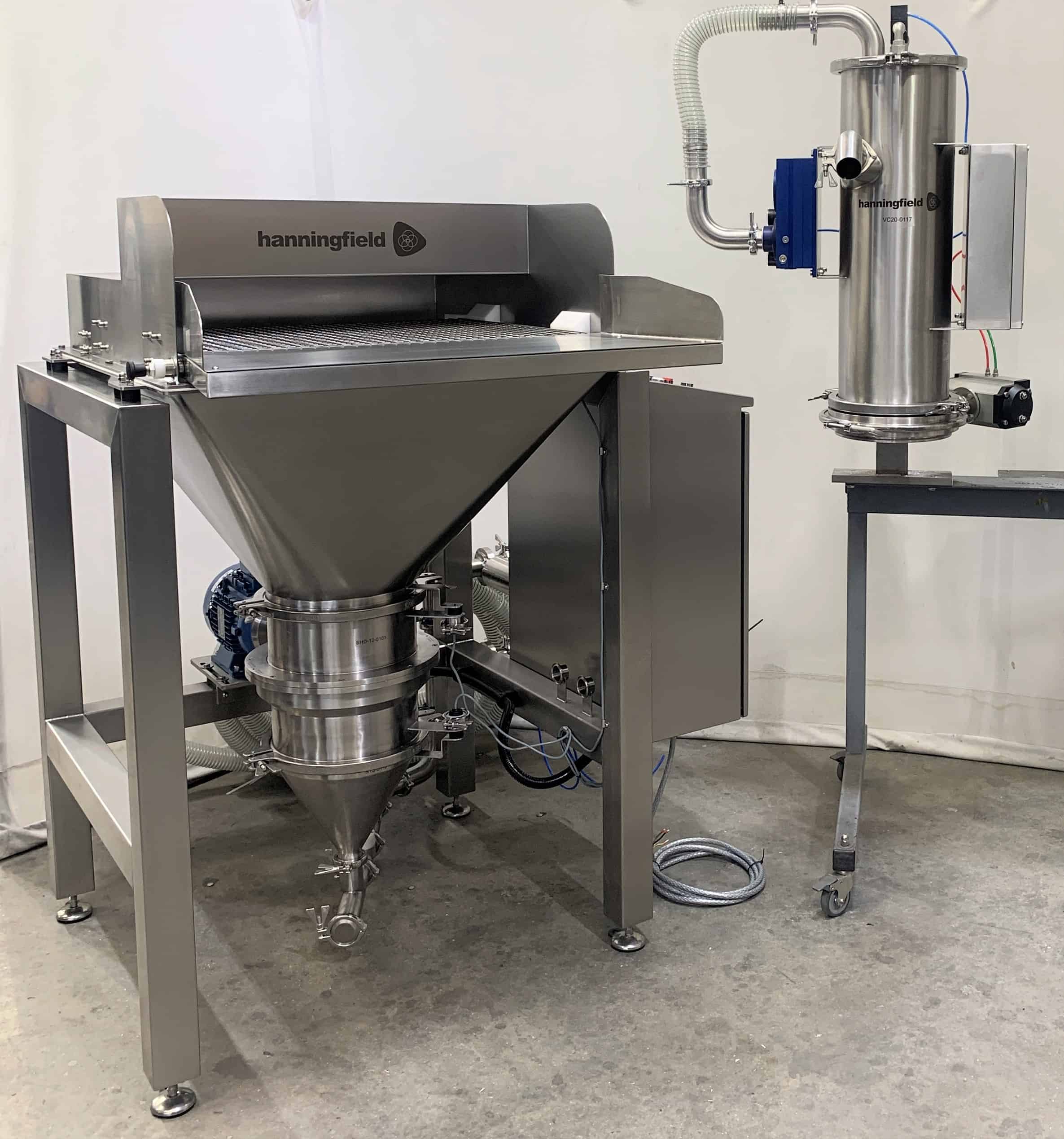

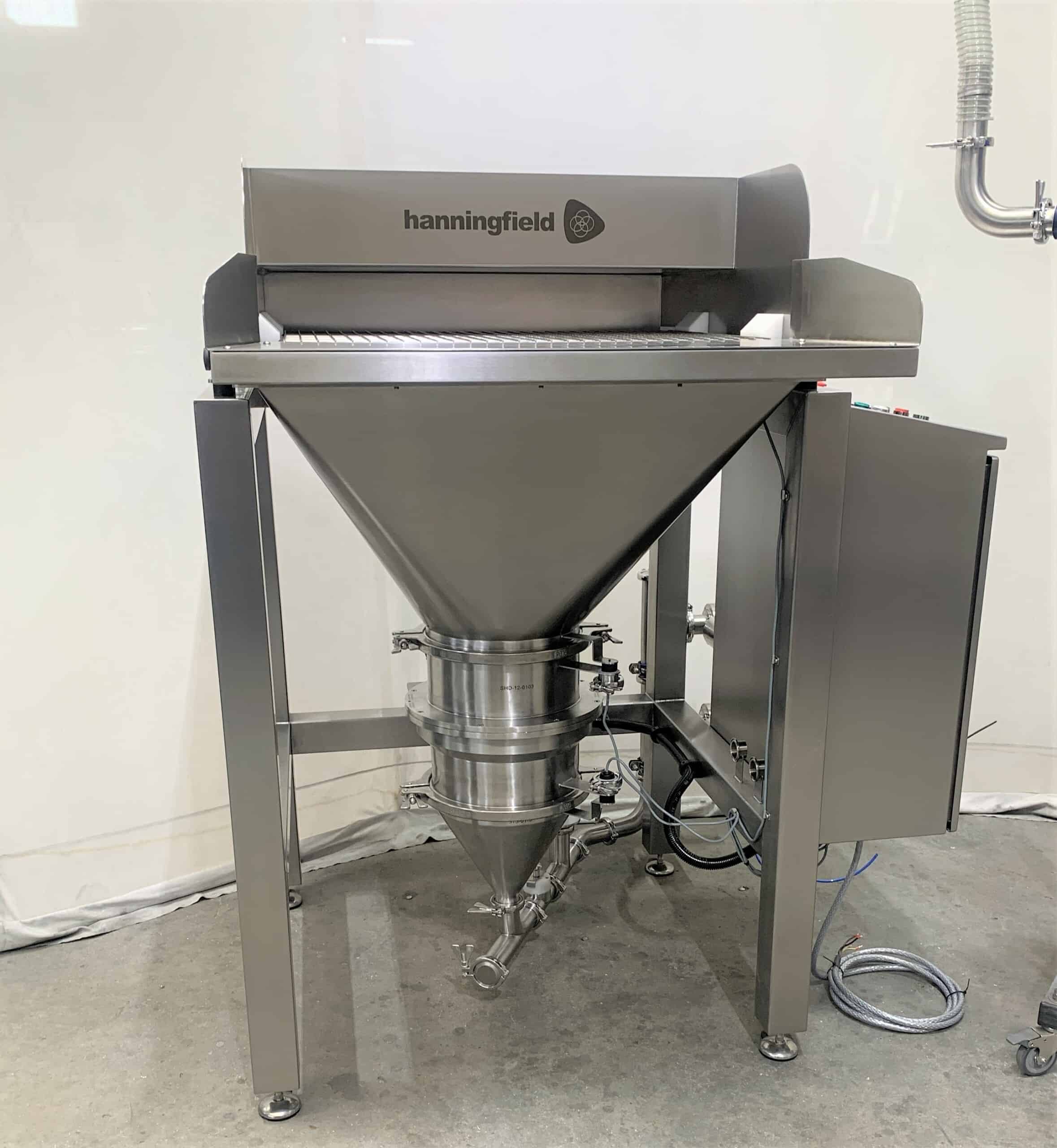

Take a closer look at this customised Sack Tip Station below >>
