Key Information
The Uni-Mill M20-U conical mill is designed for high capacity production applications. The unit features a 203mm screen, enabling a throughput up to 2,000 kgs/hr (depending on application specifics). As standard, the M20-U inlet size is 315mm diameter, with a 12″ tri-clover connection on the outlet (inlet / outlet configuration can be modified to suit any requirement). The M20-U is supplied with a 4.0kW motor, set to a standard speed of 1480RPM (variable speed available).
Technical Description

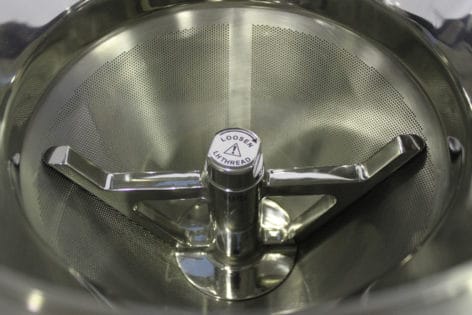

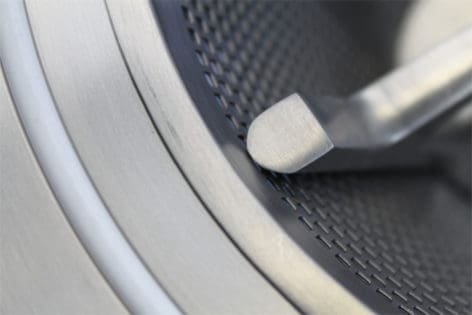

As with all models in the Uni-Mill ‘under-driven’ series, the M20-U screens and impellers do not require spacers to set the gap distance for optimal milling. Tooling can be customised including screen hole size, screen hole shape (Round-Hole, Square-Hole, Grater-Hole) and impeller type (Round-Bar, Square Bar).

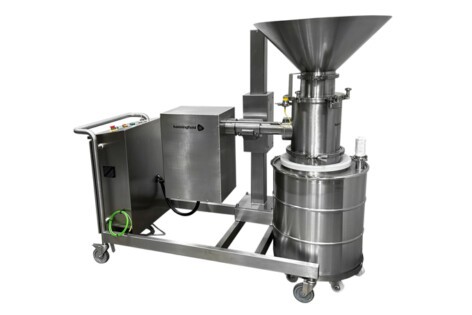

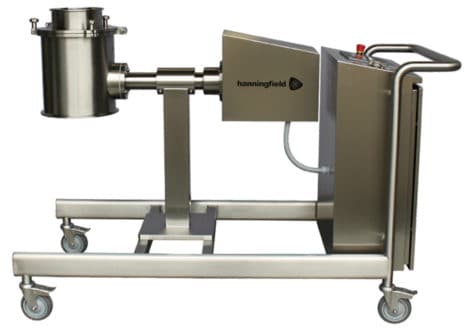

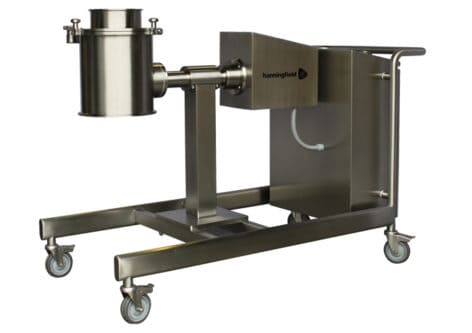

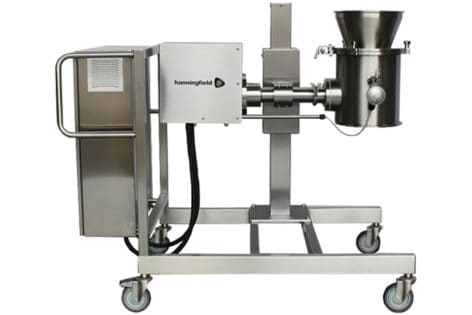

The standard M20-U design weighs approximately 160kgs (based on mobile frame mounting). The unit can be supplied with various mounting solutions, including mobile frame, swing-arm, fixed-stand, hoist-mounted, through-the-wall or free-standing.
